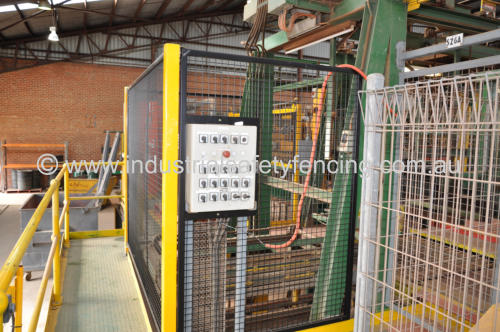

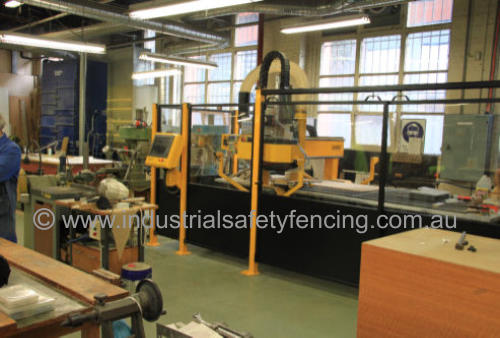

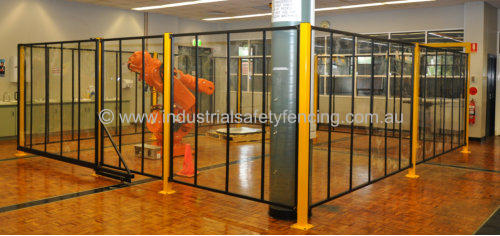

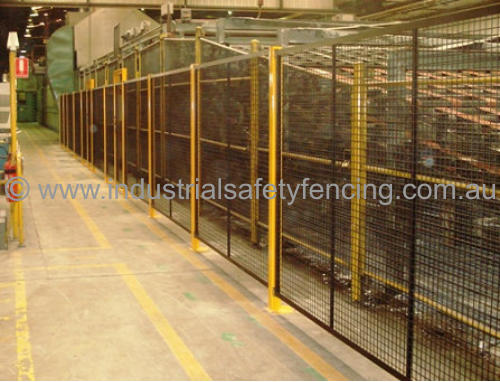

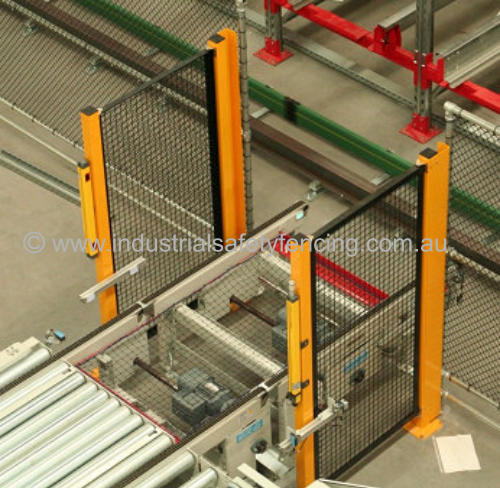

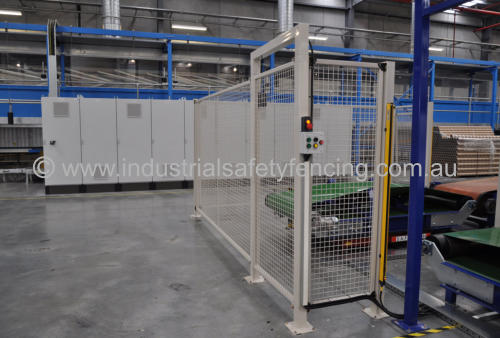

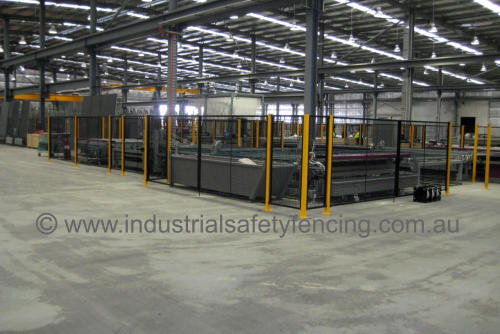

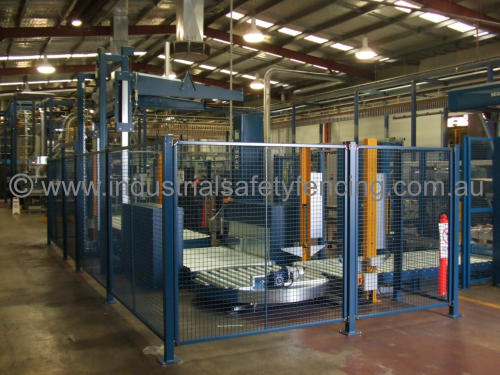

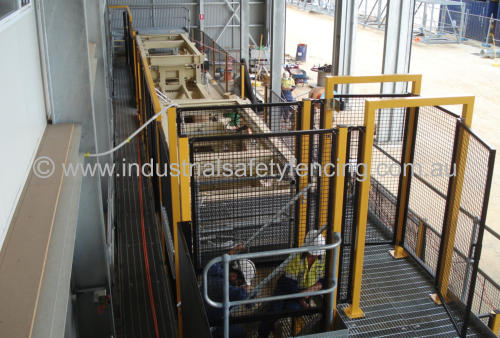

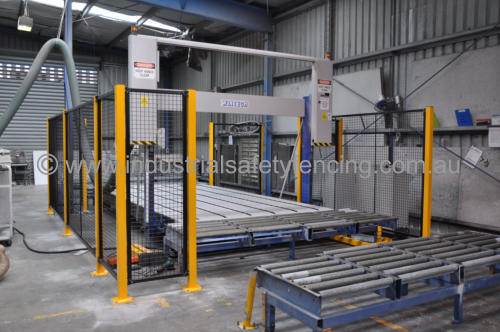

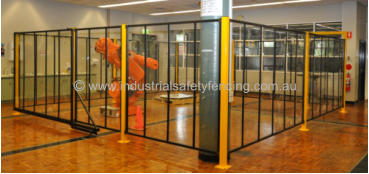

Machine Guarding

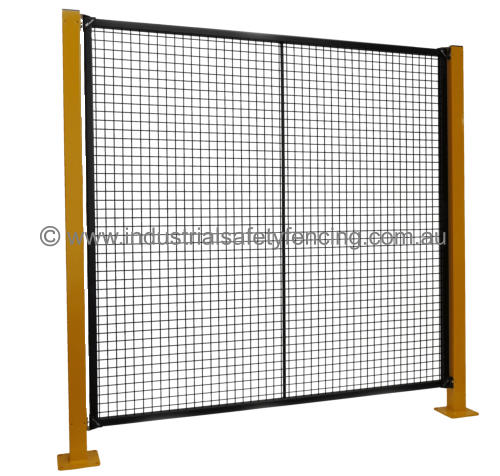

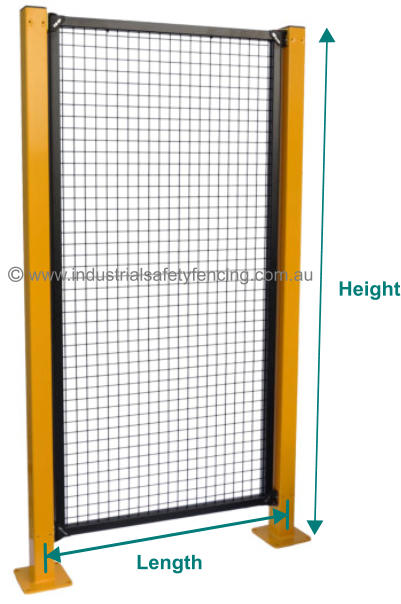

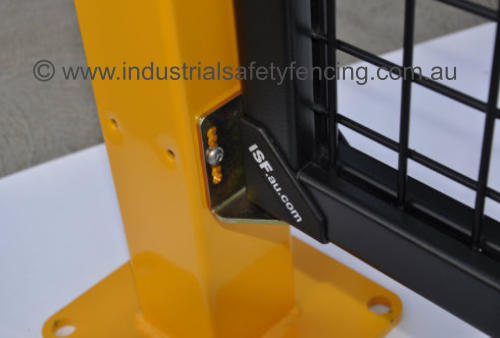

Panels HEIGHT 1.2 metre and 2.0 metre as standard stock Custom panel heights and colours are available Standard panel colour Satin black leather powder coated 2.4 metre tall panels available as non stock item LENGTHS Standards include: Panels are measured as post centres Custom panel lengths are available Custom design panels made to order PANEL FRAME 35mm x 35mm x 2.5mm Custom roll formed frame profile for maximum strength and functionality 100 % concealed wire edges Smooth edge finish Aesthetically pleasing CUSTOM INFILL MATERIALS Custom infill materials are available - contact ISF for ordering details.
Contact Us Now on (03) 9303 9922 for all your modular safety fencing needs.
Home Back
Product Code PNL(height)(width) PNL20001000
0.25 metre 0.5 metre 0.75 metre
1.0 metre 1.25 metre 1.5 metre
Click on any image to enlarge
Part Number Description
Part Numbers & Descriptions
  Standard
Click on any image to enlarge
Back to top
Click on any image to enlarge
Click a section below to learn more
Posts Panels Doors Infill Materials Accessories
1.75 metre 2.0 metre 2.25 metre
2.5 metre 2.75 metre 3.0 metre
CUSTOM PANELS
PNL12000250 Panel, 1.2m tall x 0.25m wide, 40mm mesh, Satin black leather Stocked item PNL12000500 Panel, 1.2m tall x 0.5m wide, 40mm mesh, Satin black leather Stocked item PNL12000750 Panel, 1.2m tall x 0.75m wide, 40mm mesh, Satin black leather Stocked item PNL12001000 Panel, 1.2m tall x 1.0m wide, 40mm mesh, Satin black leather Stocked item PNL12001250 Panel, 1.2m tall x 1.25m wide, 40mm mesh, Satin black leather Stocked item PNL12001500 Panel, 1.2m tall x 1.5m wide, 40mm mesh, Satin black leather Stocked item PNL12001750 Panel, 1.2m tall x 1.75m wide, 40mm mesh, Satin black leather Stocked item PNL12002000 Panel, 1.2m tall x 2.0m wide, 40mm mesh, Satin black leather Stocked item PNL12002250 Panel, 1.2m tall x 2.25m wide, 40mm mesh, Satin black leather Stocked item PNL12002500 Panel, 1.2m tall x 2.5m wide, 40mm mesh, Satin black leather Stocked item PNL12002750 Panel, 1.2m tall x 2.75m wide, 40mm mesh, Satin black leather Stocked item PNL12003000 Panel, 1.2m tall x 3.0m wide, 40mm mesh, Satin black leather Stocked item PNL20000250 Panel, 2.0m tall x 0.25m wide, 40mm mesh, Satin black leather Stocked item PNL20000300 Panel, 2.0m tall x 0.3m wide, 40mm mesh, Satin black leather Stocked item PNL20000400 Panel, 2.0m tall x 0.4m wide, 40mm mesh, Satin black leather Stocked item PNL20000500 Panel, 2.0m tall x 0.5m wide, 40mm mesh, Satin black leather Stocked item PNL20000600 Panel, 2.0m tall x 0.6m wide, 40mm mesh, Satin black leather Stocked item PNL20000700 Panel, 2.0m tall x 0.7m wide, 40mm mesh, Satin black leather Stocked item PNL20000750 Panel, 2.0m tall x 0.75m wide, 40mm mesh, Satin black leather Stocked item PNL20000800 Panel, 2.0m tall x 0.8m wide, 40mm mesh, Satin black leather Stocked item PNL20000900 Panel, 2.0m tall x 0.9m wide, 40mm mesh, Satin black leather Stocked item PNL20001000 Panel, 2.0m tall x 1.0m wide, 40mm mesh, Satin black leather Stocked item PNL20001100 Panel, 2.0m tall x 1.1m wide, 40mm mesh, Satin black leather Stocked item PNL20001200 Panel, 2.0m tall x 1.2m wide, 40mm mesh, Satin black leather Stocked item PNL20001250 Panel, 2.0m tall x 1.25m wide, 40mm mesh, Satin black leather Stocked item PNL20001300 Panel, 2.0m tall x 1.3m wide, 40mm mesh, Satin black leather Stocked item PNL20001400 Panel, 2.0m tall x 1.4m wide, 40mm mesh, Satin black leather Stocked item PNL20001500 Panel, 2.0m tall x 1.5m wide, 40mm mesh, Satin black leather Stocked item PNL20001600 Panel, 2.0m tall x 1.6m wide, 40mm mesh, Satin black leather Stocked item PNL20001700 Panel, 2.0m tall x 1.7m wide, 40mm mesh, Satin black leather Stocked item PNL20001750 Panel, 2.0m tall x 1.75m wide, 40mm mesh, Satin black leather Stocked item PNL20001800 Panel, 2.0m tall x 1.8m wide, 40mm mesh, Satin black leather Stocked item PNL20001900 Panel, 2.0m tall x 1.9m wide, 40mm mesh, Satin black leather Stocked item PNL20002000 Panel, 2.0m tall x 2.0m wide, 40mm mesh, Satin black leather Stocked item PNL20002100 Panel, 2.0m tall x 2.1m wide, 40mm mesh, Satin black leather Stocked item PNL20002200 Panel, 2.0m tall x 2.2m wide, 40mm mesh, Satin black leather Stocked item PNL20002250 Panel, 2.0m tall x 2.25m wide, 40mm mesh, Satin black leather Stocked item PNL20002300 Panel, 2.0m tall x 2.3m wide, 40mm mesh, Satin black leather Stocked item PNL20002400 Panel, 2.0m tall x 2.4m wide, 40mm mesh, Satin black leather Stocked item PNL20002500 Panel, 2.0m tall x 2.5m wide, 40mm mesh, Satin black leather Stocked item PNL20002600 Panel, 2.0m tall x 2.6m wide, 40mm mesh, Satin black leather Stocked item PNL20002700 Panel, 2.0m tall x 2.7m wide, 40mm mesh, Satin black leather Stocked item PNL20002750 Panel, 2.0m tall x 2.75m wide, 40mm mesh, Satin black leather Stocked item PNL20002800 Panel, 2.0m tall x 2.8m wide, 40mm mesh, Satin black leather Stocked item PNL20002900 Panel, 2.0m tall x 2.9m wide, 40mm mesh, Satin black leather Stocked item PNL20003000 Panel, 2.0m tall x 3.0m wide, 40mm mesh, Satin black leather Stocked item Custom Doors Sizes Available

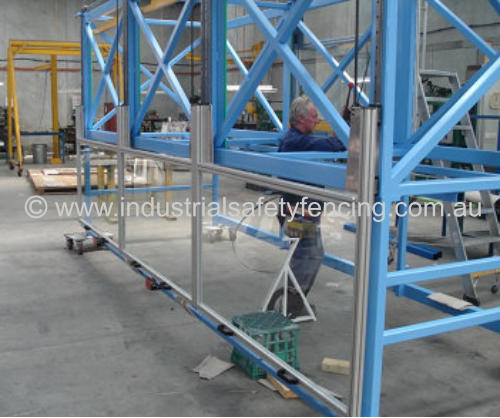

Panel Polycarbonate Polycarbonate
