Machine Guarding

Stainless Steel
Back
Posts Central base plate PST-CN-1.2 / 2.0 Offset base plate PST-OFF-1.2 / 2.0 Corner base plate PST-COR-1.2 / 2.0 Central base plate   Stainless Steel PST-CN-2.0-SS Offset base plate   Stainless Steel PST-OFF-2.0-SS

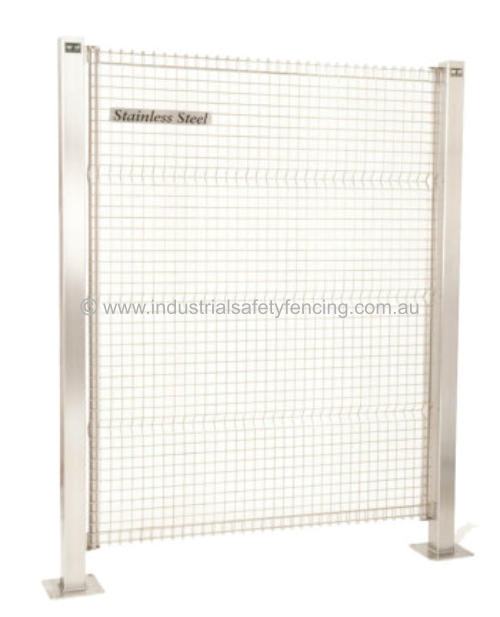

Panels 1.2 Meter Panel EPNL-1.2 2.0 Meter Panel EPNL-2.0 2.0 Meter Panel Stainless Steel EPNL-2.0-SS All panels 2.0 metres long
Doors Doors and other accessories are available as per our standard ranges.

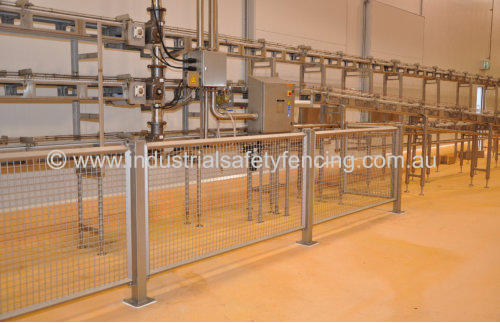

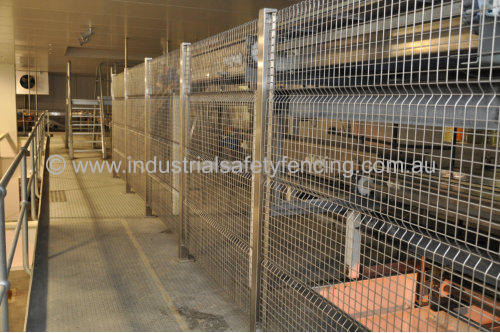

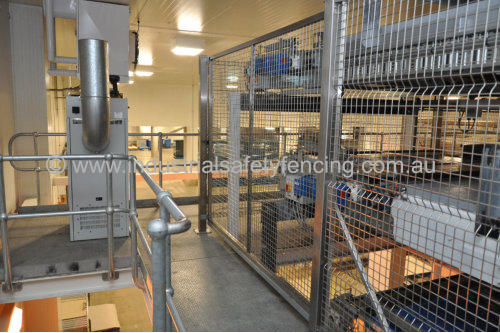

Available 1.2m and 2.0m height panels All panels 2.0 metres long Durable, strong construction Light weight Highly visible Quick installation Powder coated. Optional colour choices Easily removable for maintenance access Available in galvanised finish for external installations Now Available in 316 stainless steel, 2.0 metre tall only
Click on any image to enlarge
‘Easy Fence’ Tube On Edge

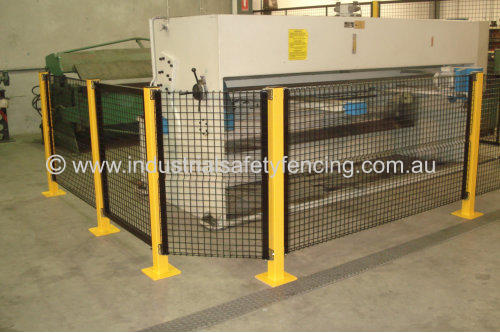

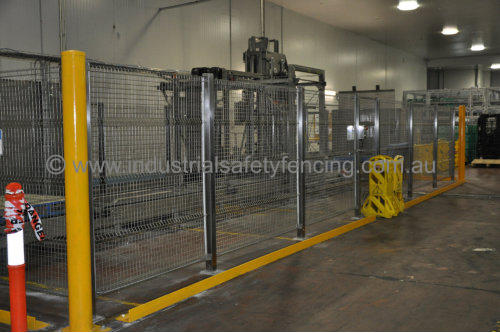

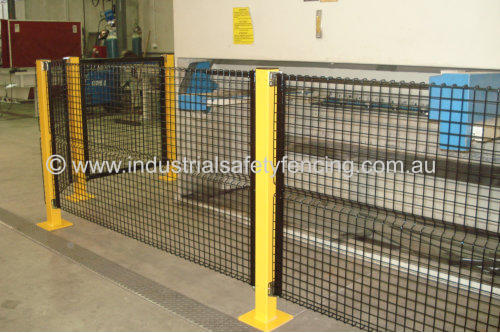

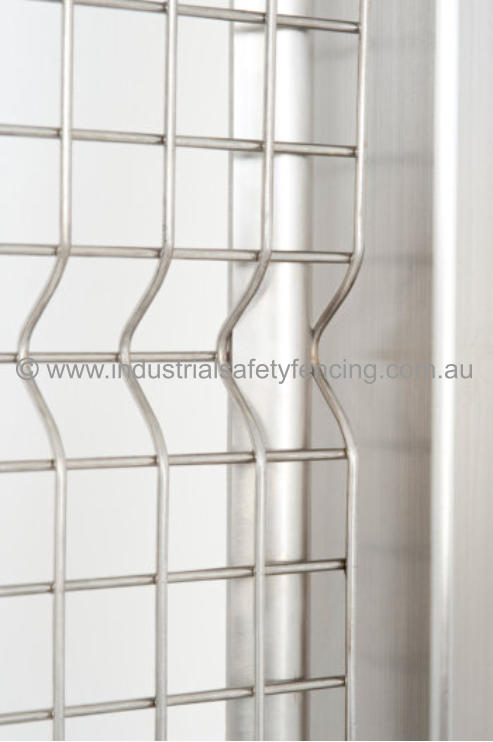

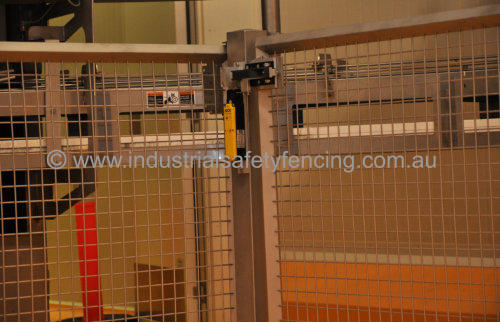

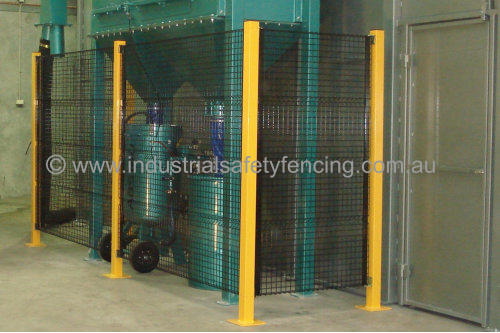

‘Easy Fence’ ISF ‘Easy Fence’ has been developed to eliminate the costly and time consuming need for elaborate engineering drawings to manufacture a safety enclosure. Easy Fence’s unique and patented design allows the installer to cut and modify panels on site, without degrading the integrity or aesthetics of the panel. Standard panels eliminate the long turn around times associated with special manufactured components, therefore making your site safer, sooner. ISF Easy Fence integrates with all standard ISF components, including posts, doors, accessories and electrical interlocks. When installed correctly Easy Fence meets all requirements of Australian Standard 4024-1 for machinery guarding.

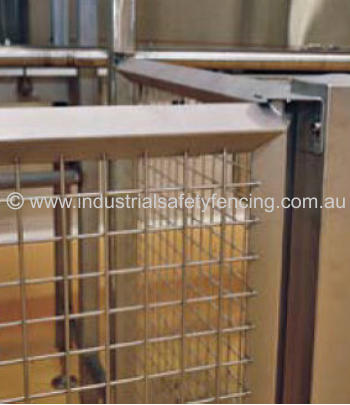

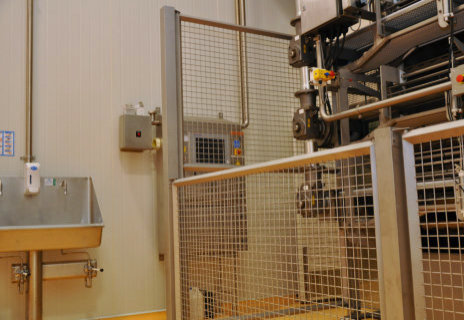

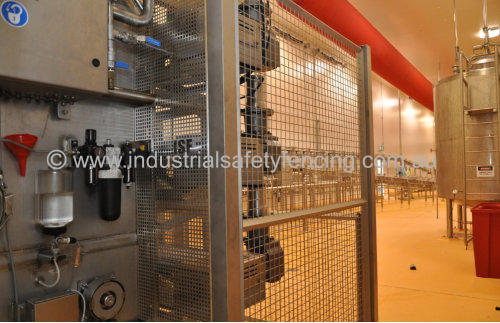

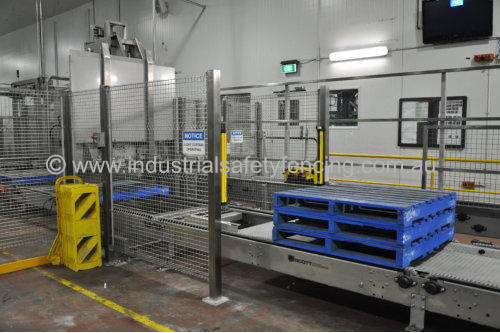

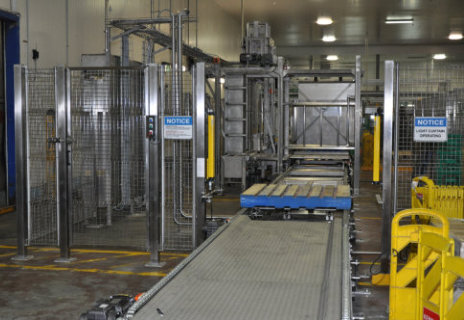

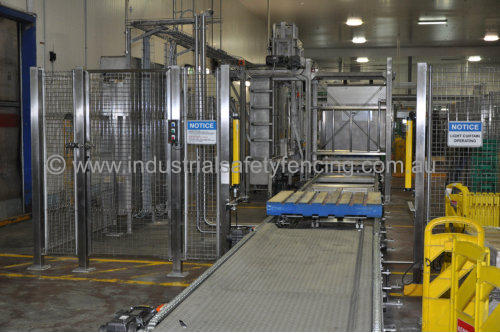

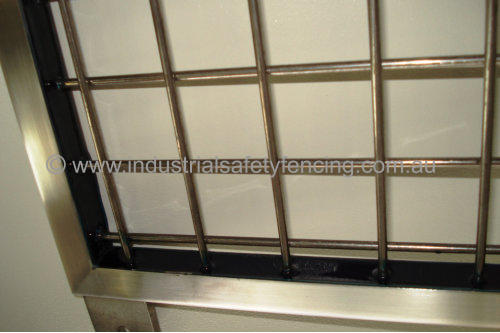

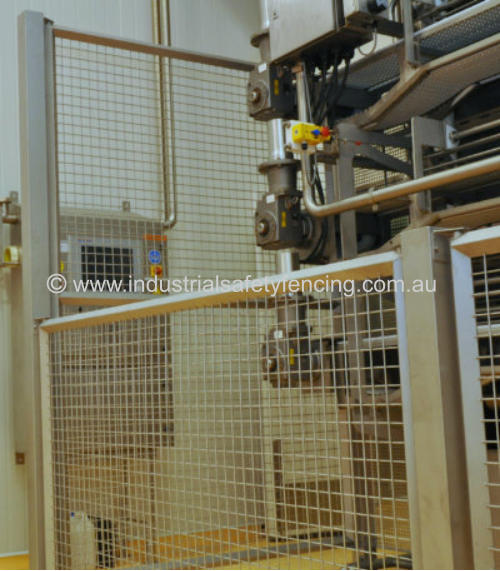

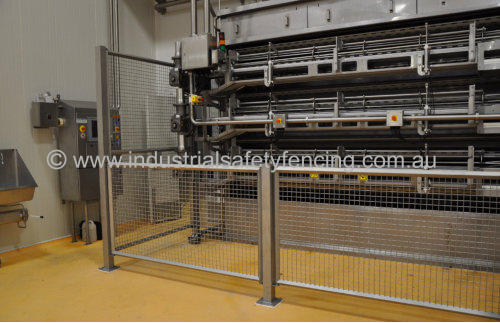

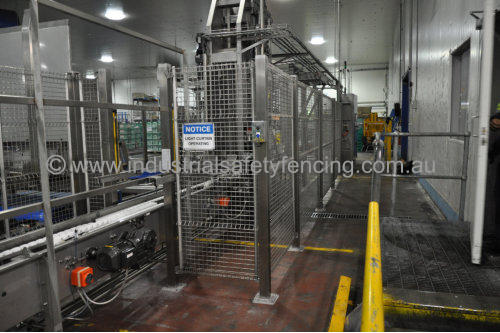

Tube On Edge Fencing Tube On Edge safety fencing offers the highest standard in safety fencing. Tube On Edge fencing is designed to eliminate virtually all horizontal flat surfaces where liquids may pool, with special care taken to ensure all points of egress are identified. Tube On Edge fencing is not carried in stock and will be manufactured to order. ISF has a large range of standard accessories including single and twin doors. Posts are available ex stock with panel mounting points in all 4 sides, or can be ordered with mounting point only as required. All panel mounting points are threaded using sealed nutserts, so if a thread is not being used it is sealed to prevent contamination entering the post.
Contact Us Now on (03) 9303 9922 for all your modular safety fencing needs.
Home Back
Click on any image to enlarge
Back to top
Part Numbers & Descriptions
EPNL12002000 Easypanel, 1.2m tall x 2.0m long 40mm x 40mm x 4mm galvanised mild steel mesh Stocked item EPNL20002000 Easypanel, 2.0m tall x 2.0m long 40mm x 40mm x 4mm galvanised mild steel mesh Stocked item EPNL20002000SS Easypanel, 2.0m tall x 2.0m long 40mm x 40mm x 4mm 316 stainless steel mesh Stocked item PST1200CEN 1.2m tall post, central base plate Stocked item PST1200COR 1.2m tall post, corner base plate Stocked item PST1200OFF 1.2m tall post, offset base plate Stocked item PST2000CEN 2.0m tall post, central base plate Stocked item PST2000COR 2.0m tall post, corner base plate Stocked item PST2000OFF 2.0m tall post, offset base plate Stocked item PST2000CENSS 2.0m tall post, central base plate. Stainless steel. Made to order PST2000CORSS 2.0m tall post, corner base plate. Stainless steel. Made to order PST2000OFFSS 2.0m tall post, offset base plate. Stainless steel. Made to order
Part Number Description
